GK-3568-A
GK-3568-A
采用瑞芯微RK3568四核Cortex-A55 處理器，主頻最高可達2.0GHz，效能有大幅提升
最高可配8GB內存容量，頻率高達1600MHz；支持全鏈路ECC，讓數據更安全可靠
配置雙千兆自適應RJ45以太網口，并擴展4個以太網控制器 I211，可用于千兆路由、軟路由、防火墻等等
Processor System | |
CPU | RK3568，ARM Cortex A55，Quad-core，2 GHz |
GPU | G52 2EE,OpenGL ES1.1/2.0/3.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0 |
NPU | RK NN, 0.8Tops |
Memory | |
Type | 32-bit，LP4/LP4x |
Capacity | 2GB(Up to 8GB) |
Display | |
VGA | 1×Port |
HDMI | 1×HDMI Port, Up to 4K*2K Multiple Display |
Storage | |
eMMC | Capacity 16GB(Up to 64 GB) |
COM | |
Port Number | 3 |
Mode | 2×RS232（可配置為TTL），1×RS485 |
PWR | 可選5V 供電 |
Ethernet | |
RJ45 | 10/100/1000Mbps |
Wifi | |
AP6398S | 802.11 b/g/n/ac, 2.4/5GHz SDIO WIFI/BT MODULE-2T2R |
Bluetooth | |
AP6398S | BT-V5.0 BLE |
Expansion Slot | |
Mini_PCIe | 1×PCIe2.0（4G Mode、PCIe2.0、mSATA） 1×PCIe3.0 |
IO & Connector | |

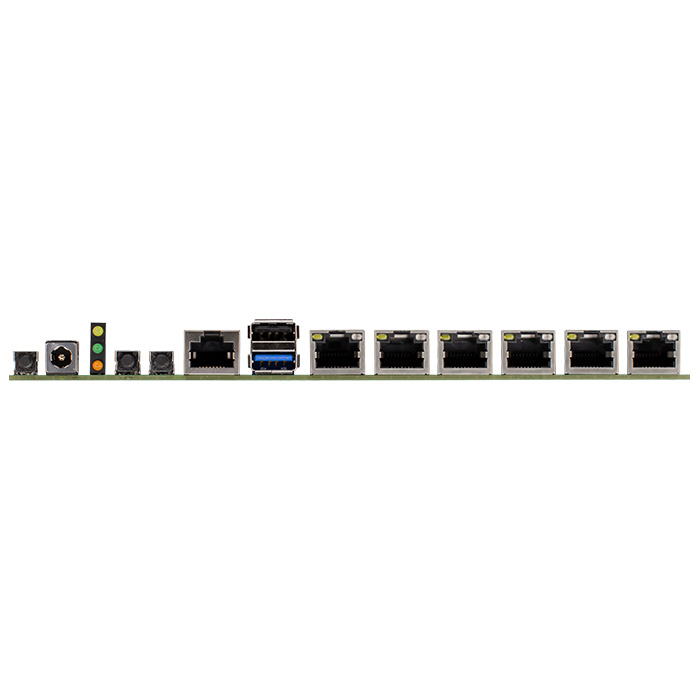

Rear IO | 1×DC_IN,DC12V/2A |
1×SIM Slot(With card tray) | |
1×TF Card Up to 64 GB | |
1×USB2.0 1×USB3.0 OTG | |
6×RJ45 10/100/1000M LAN（Bypass：LAN3-4，LAN5-6） | |
1×HDMI | |
Internal Connector 1 | 1×VGA |
1×SATA2.0 | |
2×USB2.0 | |
2×RS232，1×RS485 | |
GPIO，8CH | |
2×TP port，I2C Interface | |
1×SATA | |
1組LAN LED插針 | |
Mechanical & Environment | |
Dimension | 203*146mm |
PWR Input | DC12V |
PWR Output | DC12V（ATX 4Pin接口） |
Operation | -10~55℃，10%~90%RH，non-condensing |
Storage | -40~75℃，5%~95%RH，non-condensing |
OS | |
Android 11、Linux、OpenWrt、Debian | |
|
