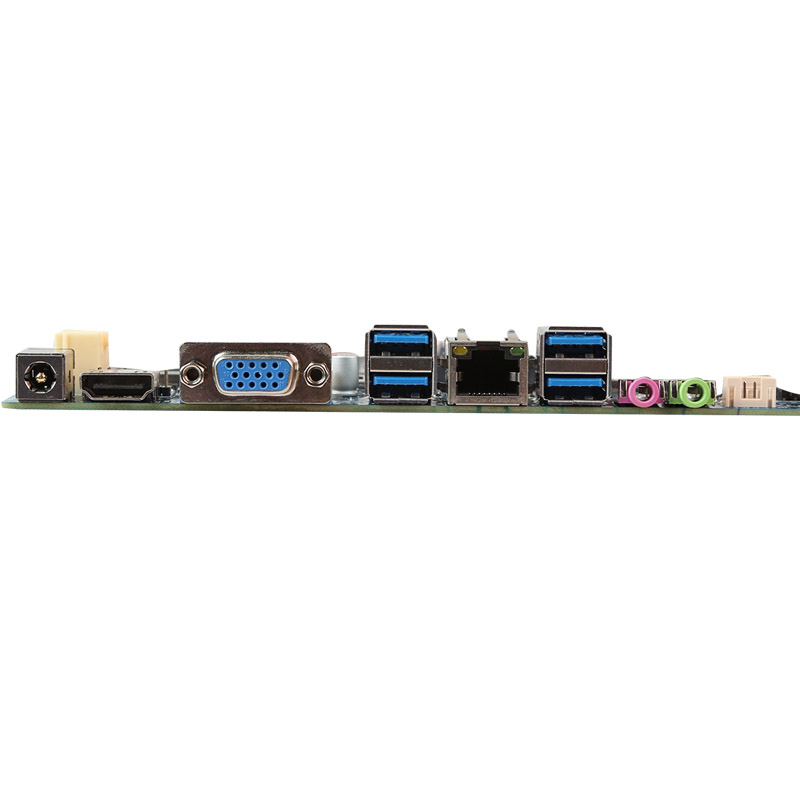

VGA

1

DVI

0

HDMI

1

DP

0

COM

0

USB

4×USB3.0

LAN

1×RJ45

Audio

1×Line-out，1×Mic-in

PS/2

0

DC JACK

1

Internal Connector

LVDS/Inverter

1/1

eDP

0

VGA

1

HDMI

1

LPT

1

COM

6

USB

2×Header（可擴(kuò)展3個USB2.0）

Audio

1×F_AUDIO，1×SPK

GPIO

1，4in-4out

PS/2

1（Keyboard   & Mouse）

DC_IN

1

SIM

1

Mechanical & Environment

Dimension

170×170mm

PWR Input

DC 12V

Operation

0~50℃，10%~90%，non-condensing

Storage

-25~75℃，5%~95%，non-condensing

CPU

Intel?   Celeron? J3455 1.5GHz，Max

Burst   to 2.3GHz

Memory

Slot   Number

1×DDR3L   SO-DIMM

Type

DDR3L   1600

Max   Size

8GB

Channels

Single   Channel

Graphics

Controller

Intel?   HD Graphics 500

VGA

1×DB15，1×12Pin Header

DVI

0

HDMI

1×HDMI   Port，1×16Pin Header

DP

0

LVDS

1

eDP

0

Multi   Display

Triple   Display

Storage

SATA

1

mSATA

1

eMMC

1（可選）

COM

Port   Number

6

Mode

RS232

PWR

COM2/3/6第9Pin可選5V/12V供電

Expansion Slot

PCIe

0

Mini-PCIe

1

M.2

0
